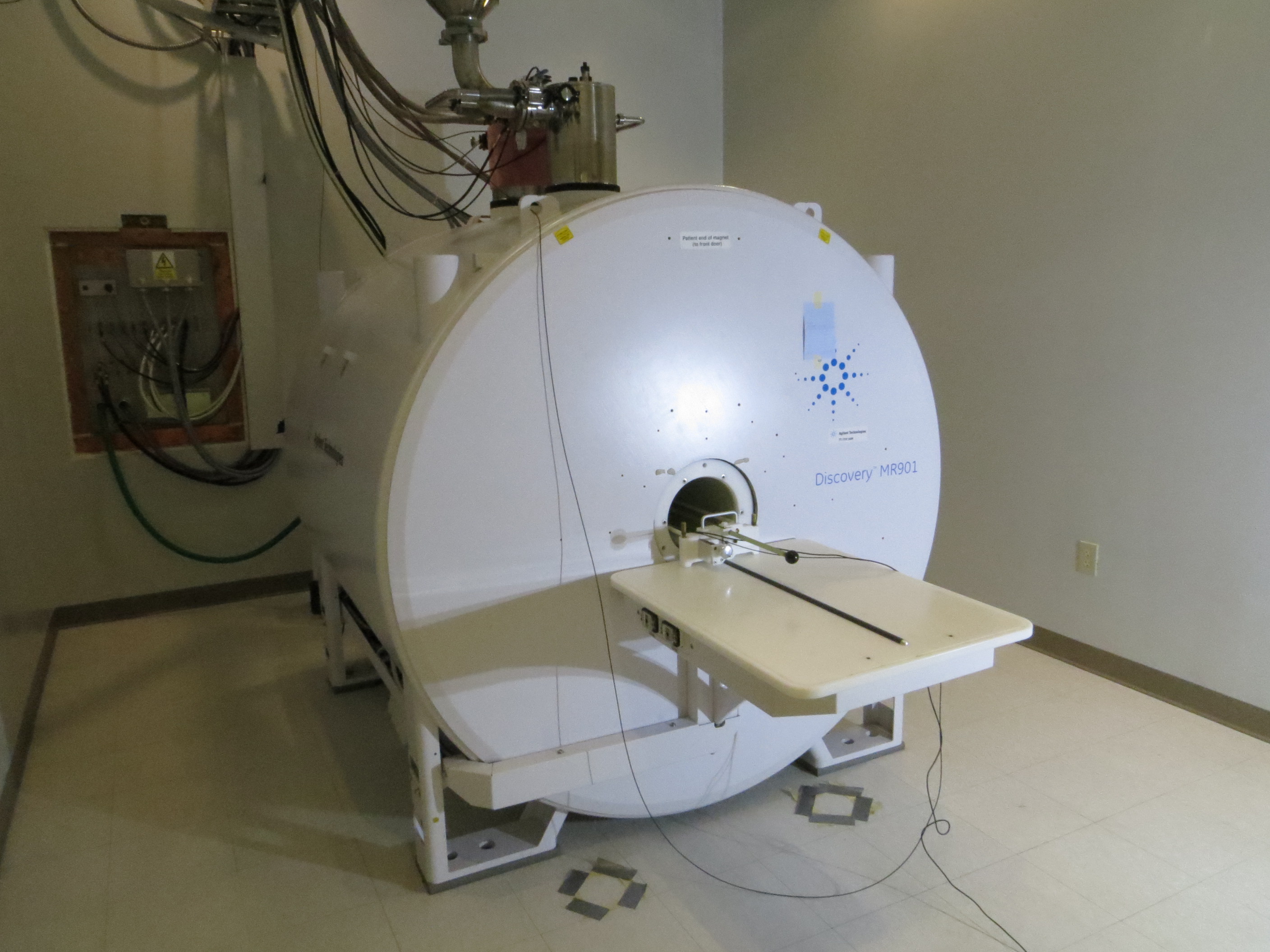

Magnetic Resonance Imaging (MRI)

Sequences available

• T1-, T2 and proton density-weighted Turbo-Spin Echo
• 2D and 3D Gradient Echo
• Spin Echo
• Fluid attenuated inversion recovery (FLAIR)
• Ultra-Short Echo Time Imaging (UTE) with TE of 80-100 microseconds
• T1, T2 and T2* mapping sequences
• Fast dynamic imaging (TRICKS)
• Dixon/IDEAL fat fraction mapping

Radiofrequency probes /coils

¹H / Proton:

• 150 mm diameter quadrature send- and receive volume coil
• 72 mm diameter quadrature send- and receive volume coil
• 4-channel active decoupled receive rat brain coil
• 2-channel active decoupled receive mouse brain coil
• 2 cm diameter active decoupled loop coil for various dedicated applications

X-nuclei:

• 2 cm diameter send and receive loop coils ranging from 26 MHz - 310 MHz (2H, 13C, 23Na, 31P, 19F)

• Perfect for anatomical imaging providing detailed 3D images of internal structures and revealing subtle abnormalities that cannot be identified with other imaging techniques (like radiographs or CT scans)
• Non-invasive technique, does not use ionizing radiation to acquire images
• Can be repeated and enables longitudinal studies
• Excellent soft-tissue contrast (resolution ~100 µm)
• For some diseases, MRI is the only imaging technique that can permit an accurate diagnosis
• Capable of imaging live mice, rats, and other small animals (up to the size of a cat)
• Can be used to quantitate imaging like e.g., fat-fraction mapping or tissue perfusion
• Enables to depict tissue oedema or necrotic areas
• Method of choice for imaging small lesions
• Easy clinical translation

• The scan time for MRI can be longer compared to other modalities
• Metals or implants can introduce artifacts in the images
• Lack of bone contrast

• Trudel, G. et al. (2021); doi: http://dx.doi.org/10.21037/qims-20-1343
• McDonald, M.W. et al. (2021); doi: https://doi.org/10.1177/15459683211005019
• Koudrina, A. et al (2021) ; doi : https://dx.doi.org/10.1021/acsami.0c16666
• Dwyer, Z. et al (2021) ; doi: https://doi.org/10.1016/j.neurobiolaging.2020.11.013
• Huang, T. (2019); doi: https://doi.org/10.1074/jbc.ra119.007941
